Number Plate Sizes UK: A Complete Guide

Quick answer: 520 × 111 mm is the most common oblong number plate size fitted to modern UK cars, while a two-line motorcycle plate is commonly around 229 × 178 mm (9 × 7 inches). However, UK law does not simply prescribe one overall plate size for every vehicle. Road legality depends mainly on the characters, spacing, margins, materials and required markings.

What is the standard UK car number plate size?

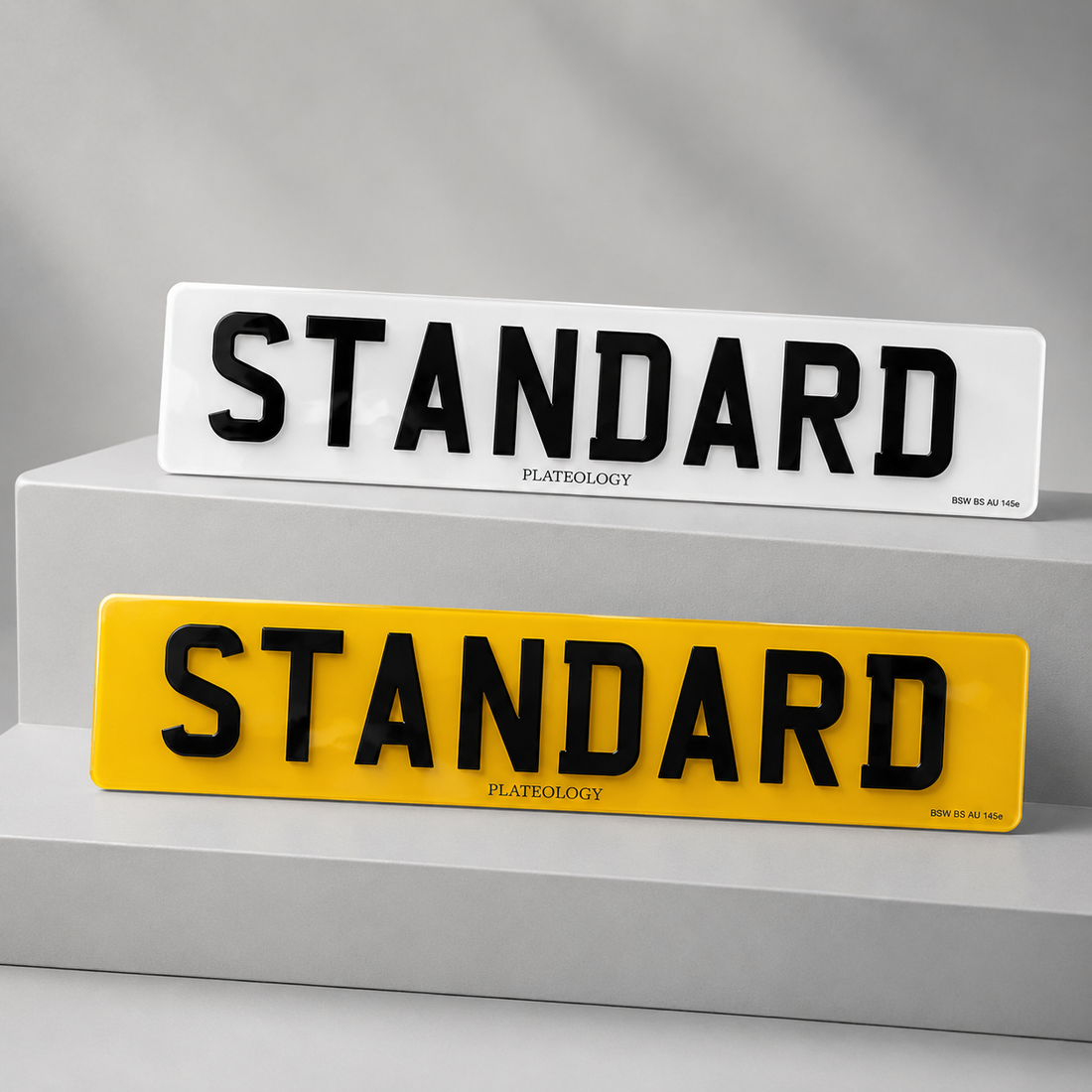

The familiar oblong car plate is usually 520 × 111 mm. It fits most modern front and rear plate recesses and is the size most drivers mean when they ask for a “standard UK number plate”.

That measurement is a common finished size rather than a universal legal size for every car. A vehicle with a shorter registration or a differently shaped mounting area may use another plate size, provided the registration still meets the legal character, spacing and margin requirements.

• Common car plate: 520 × 111 mm
• Front plate: black characters on a white reflective background
• Rear plate: black characters on a yellow reflective background

For a familiar factory-style fit, browse our standard number plates.

UK motorcycle number plate sizes

A common motorcycle plate measures approximately 229 × 178 mm (9 × 7 inches). The official rules focus on the character layout rather than naming this as the only permitted overall size.

Motorcycles and motor tricycles registered on or after 1 September 2001 must display a rear number plate only, and the registration should be arranged over two lines. A single-line motorcycle registration or characters reduced below the legal measurements can make the plate non-compliant.

See the available shapes and configurations in our motorcycle and bike number plate range.

The legal character sizes and spacing

For number plates fitted from 1 September 2001, DVLA guidance sets the following dimensions for cars and most other vehicles:

• Character height: 79 mm
• Character width: 50 mm, except the number 1 and letter I
• Character stroke: 14 mm
• Space between characters: 11 mm
• Space between the age identifier and final letters: 33 mm
• Top, bottom and side margins: 11 mm
• Vertical space on a two-line layout: 19 mm

Motorcycle and motor-tricycle characters

• Character height: 64 mm
• Character width: 44 mm, except the number 1 and letter I
• Character stroke: 10 mm
• Space between characters: 10 mm
• Space between the age identifier and final letters: 30 mm
• Top, bottom and side margins: at least 11 mm
• Vertical space between the two rows: 13 mm

Older and historic vehicles can be subject to different rules, so check the vehicle’s age and the latest official guidance before ordering.

Are short number plates legal in the UK?

A shorter physical plate can be suitable when the registration itself needs less horizontal space. The important point is that the letters and numbers must not be squeezed together, made smaller or incorrectly spaced to force them onto a short blank.

A compliant short plate must still provide the prescribed characters, group spacing and margins, along with the supplier and British Standard markings required for road use. The shortest suitable size therefore depends on the exact registration and the vehicle.

What about square and oversized plates?

Square or two-line plates are often used where the vehicle’s mounting recess requires that shape. Larger plates may be needed for longer registrations or particular vehicle fittings. The mounting area alone does not override the display rules, so choose the layout that fits the vehicle while keeping every character and margin compliant.

If appearance rather than road use is the priority, keep that specification separate and choose from our clearly described show and novelty plate options.

Trailer and caravan number plates

For normal towing in the UK, a trailer or caravan must display the same registration number as the towing vehicle. If more than one trailer is being towed, the matching plate must be fixed to the trailer at the back.

Some commercial or heavy trailers travelling abroad must be registered separately. In those cases, the trailer’s own registration plate is displayed as well as the towing vehicle’s plate. Check the current GOV.UK trailer guidance before an international journey.

What else makes a number plate road legal?

Size is only part of the specification. For modern vehicles, road-use plates must also:

• use reflective material with a white front and yellow rear background
• show solid black characters without a patterned background
• use the prescribed number plate typeface and spacing
• show the supplier’s identifying details
• carry the applicable British Standard mark—BS AU 145e for plates fitted after 1 September 2021

Raised 3D characters are permitted when the complete plate meets the rules, but a style name on its own does not guarantee compliance. Select the road-legal configuration when ordering 3D gel number plates or 4D number plates.

How to choose the right plate size

1. Measure the mounting recess: check the maximum width and height available on the vehicle.
2. Check the registration: the number of characters affects the shortest compliant finished size.
3. Choose road-use or show-plate specifications: they serve different purposes and should be clearly distinguished.
4. Prepare the required documents: a registered supplier must check proof of identity and entitlement before making road-use plates.

Read our valid documents guide and number plate ordering process before placing your order.

UK number plate size FAQs

Is 520 × 111 mm the only legal car plate size?

No. It is the most common oblong size, but the legal requirements focus on the characters, spacing, margins, materials and markings. The finished plate must also be suitable for the vehicle.

Can I make my plate shorter if I have a short registration?

Potentially, yes. A shorter registration may fit on a shorter blank, but none of the legal characters, gaps or margins can be reduced. The correct finished size depends on the exact registration.

Can a motorcycle number plate be on one line?

Motorcycle and motor-tricycle registration numbers should be arranged over two lines. Bikes registered on or after 1 September 2001 display the plate at the rear only.

Are 3D gel and 4D plates road legal?

Raised characters can be permitted, but the entire plate must meet the current rules. That includes the prescribed font, dimensions, spacing, colours, materials and permanent supplier and British Standard markings.

Where can I check the official rules?

Use the current GOV.UK number plate rules and the DVLA’s INF104 guidance. Requirements can change, so official guidance should take priority if anything differs from this general guide.
